F60,62,67,68,69 Z/ZZ(Flange type with shields)

F60,62,67,68,69 Z/ZZ(Flange type with shields)

Category:

Description

Item No.: F60,62,67,68,69 Z/ZZ(Flange type with shields)

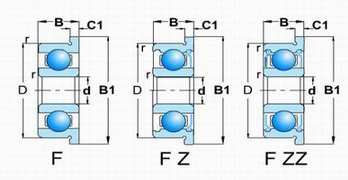

Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) Bearing Number
d D B D1 C1 rs min Cr Cor Grease Oil (Approx.)
1.5 6 2.5 7.5 0.6 0.15 274 86 71,000 84,000 0.42 F60/1.5
1.5 6 2.5 7.5 0.6 0.15 274 86 71,000 84,000 0.42 F60/1.5C3
1.5 6 3 7.5 0.8 0.15 274 86 71,000 84,000 0.42 F60/1.5-Z
1.5 6 3 7.5 0.8 0.15 274 86 71,000 84,000 0.42 F60/1.5-ZZ
2 7 2.8 8.5 0.7 0.15 380 125 62,000 73,000 0.64 F602
2 7 2.8 8.5 0.7 0.15 380 125 62,000 73,000 0.64 F602C3
2 7 3.5 8.5 0.9 0.15 380 125 62,000 73,000 0.64 F602-Z
2 7 3.5 8.5 0.9 0.15 380 125 62,000 73,000 0.64 F602-ZZ
2.5 8 2.8 9.5 0.7 0.15 550 174 56,000 66,000 0.83 F60/2.5
2.5 8 2.8 9.5 0.7 0.15 550 174 56,000 66,000 0.83 F60/2.5C3
2.5 8 4 9.5 0.9 0.15 550 174 56,000 66,000 0.83 F60/2.5-Z
2.5 8 4 9.5 0.9 0.15 550 174 56,000 66,000 0.83 F60/2.5-ZZ
3 9 3 10.5 0.7 0.15 635 219 50,000 59,000 1 F603
3 9 3 10.5 0.7 0.15 635 219 50,000 59,000 1 F603C3
3 9 5 10.5 1 0.15 635 219 50,000 59,000 1 F603-Z
3 9 5 10.5 1 0.15 635 219 50,000 59,000 1 F603-ZZ
4 12 4 13.5 1 0.2 970 360 43,000 51,000 2.3 F604
4 12 4 13.5 1 0.2 970 360 43,000 51,000 2.3 F604C3
4 12 4 13.5 1 0.2 970 360 43,000 51,000 2.3 F604-Z
4 12 4 13.5 1 0.2 970 360 43,000 51,000 2.3 F604-ZZ
5 14 5 16 1 0.2 1,330 505 39,000 46,000 3.9 F605
5 14 5 16 1 0.2 1,330 505 39,000 46,000 3.9 F605C3
5 14 5 16 1 0.2 1,330 505 39,000 46,000 3.9 F605-Z
5 14 5 16 1 0.2 1,330 505 39,000 46,000 3.9 F605-ZZ
6 17 6 19 1.2 0.3 2,190 865 35,000 42,000 6.5 F606
6 17 6 19 1.2 0.3 2,190 865 35,000 42,000 6.5 F606C3
6 17 6 19 1.2 0.3 2,190 865 35,000 42,000 6.5 F606-Z
6 17 6 19 1.2 0.3 2,190 865 35,000 42,000 6.5 F606-ZZ
8 22 7 25 1.5 0.3 3,350 1,400 32,000 37,000 13 F608
8 22 7 25 1.5 0.3 3,350 1,400 32,000 37,000 13 F608C3
8 22 7 25 1.5 0.3 3,350 1,400 32,000 37,000 13 F608-Z
8 22 7 25 1.5 0.3 3,350 1,400 32,000 37,000 13 F608-ZZ
3 10 4 11.5 1 0.15 640 224 50,000 58,000 1.8 F623
3 10 4 11.5 1 0.15 640 224 50,000 58,000 1.8 F623C3
3 10 4 11.5 1 0.15 640 224 50,000 58,000 1.8 F623-Z
3 10 4 11.5 1 0.15 640 224 50,000 58,000 1.8 F623-ZZ
4 13 5 15 1 0.2 1,310 490 42,000 49,000 3.5 F624
4 13 5 15 1 0.2 1,310 490 42,000 49,000 3.5 F624C3
4 13 5 15 1 0.2 1,310 490 42,000 49,000 3.5 F624-Z
4 13 5 15 1 0.2 1,310 490 42,000 49,000 3.5 F624-ZZ
5 16 5 18 1 0.3 1,760 680 37,000 44,000 5.2 F625
5 16 5 18 1 0.3 1,760 680 37,000 44,000 5.2 F625C3
5 16 5 18 1 0.3 1,760 680 37,000 44,000 5.2 F625-Z
5 16 5 18 1 0.3 1,760 680 37,000 44,000 5.2 F625-ZZ
6 19 6 22 1.5 0.3 2,340 885 34,000 40,000 9.2 F626
6 19 6 22 1.5 0.3 2,340 885 34,000 40,000 9.2 F626C3
6 19 6 22 1.5 0.3 2,340 885 34,000 40,000 9.2 F626-Z
6 19 6 22 1.5 0.3 2,340 885 34,000 40,000 9.2 F626-ZZ
3 6 2 7.2 0.6 0.08 242 94 60,000 71,000 0.26 F673
3 6 2 7.2 0.6 0.08 242 94 60,000 71,000 0.26 F673C3
4 7 2 8.2 0.6 0.08 222 88 54,000 63,000 0.35 F674
4 7 2 8.2 0.6 0.08 222 88 54,000 63,000 0.35 F674C3
5 8 2 9.2 0.6 0.08 217 91 49,000 57,000 0.4 F675
5 8 2 9.2 0.6 0.08 217 91 49,000 57,000 0.4 F675C3
6 10 2.5 11.2 0.6 0.1 465 196 43,000 51,000 0.74 F676
6 10 2.5 11.2 0.6 0.1 465 196 43,000 51,000 0.74 F676C3
7 11 2.5 12.2 0.6 0.1 555 269 40,000 47,000 0.77 F677
7 11 2.5 12.2 0.6 0.1 555 269 40,000 47,000 0.77 F677C3
8 12 2.5 13.2 0.6 0.1 515 252 38,000 45,000 0.86 F678
8 12 2.5 13.2 0.6 0.1 515 252 38,000 45,000 0.86 F678C3
8 12 3.5 13.6 0.8 0.1 515 252 38,000 45,000 0.86 F678-Z
8 12 3.5 13.6 0.8 0.1 515 252 38,000 45,000 0.86 F678-ZZ
1 3 1 3.8 0.3 0.05 80 22 120,000 140,000 0.06 F681
1 3 1 3.8 0.3 0.05 80 22 120,000 140,000 0.06 F681C3
1 3 1.5 3.8 0.5 0.05 80 22 120,000 140,000 0.06 F681-Z
1 3 1.5 3.8 0.5 0.05 80 22 120,000 140,000 0.06 F681-ZZ
1.5 4 1.2 5 0.4 0.15 102 29 88,000 100,000 0.09 F68/1.5
1.5 4 1.2 5 0.4 0.15 102 29 88,000 100,000 0.09 F68/1.5C3
1.5 4 2 5 0.6 0.15 102 29 88,000 100,000 0.09 F68/1.5-Z
1.5 4 2 5 0.6 0.15 102 29 88,000 100,000 0.09 F68/1.5-ZZ
2 5 1.5 6.1 0.5 0.08 171 51 74,000 87,000 0.17 F682
2 5 1.5 6.1 0.5 0.08 171 51 74,000 87,000 0.17 F682C3
2 5 2.3 6.1 0.6 0.08 171 51 74,000 87,000 0.17 F682-Z
2 5 2.3 6.1 0.6 0.08 171 51 74,000 87,000 0.17 F682-ZZ
2.5 6 1.8 7.1 0.5 0.08 209 73 65,000 76,000 0.26 F68/2.5
2.5 6 1.8 7.1 0.5 0.08 209 73 65,000 76,000 0.26 F68/2.5C3
2.5 6 2.6 7.1 0.8 0.08 209 73 65,000 76,000 0.26 F68/2.5-Z
2.5 6 2.6 7.1 0.8 0.08 209 73 65,000 76,000 0.26 F68/2.5-ZZ
3 7 2 8.1 0.5 0.1 390 130 58,000 68,000 0.38 F683
3 7 2 8.1 0.5 0.1 390 130 58,000 68,000 0.38 F683C3
3 7 3 8.1 0.8 0.1 390 130 58,000 68,000 0.38 F683-Z
3 7 3 8.1 0.8 0.1 390 130 58,000 68,000 0.38 F683-ZZ
4 9 2.5 10.3 0.6 0.15 640 224 49,000 57,000 0.76 F684
4 9 2.5 10.3 0.6 0.15 640 224 49,000 57,000 0.76 F684C3
4 9 4 10.3 1 0.15 640 224 49,000 57,000 0.76 F684-Z
4 9 4 10.3 1 0.15 640 224 49,000 57,000 0.76 F684-ZZ
5 11 3 12.5 0.8 0.15 715 282 43,000 51,000 1.3 F685
5 11 3 12.5 0.8 0.15 715 282 43,000 51,000 1.3 F685C3
5 11 5 12.5 1 0.15 715 282 43,000 51,000 1.3 F685-Z
5 11 5 12.5 1 0.15 715 282 43,000 51,000 1.3 F685-ZZ
6 13 3.5 15 1 0.15 1,080 440 39,000 46,000 2.2 F686
6 13 3.5 15 1 0.15 1,080 440 39,000 46,000 2.2 F686C3
6 13 5 15.2 1.1 0.15 1,080 440 39,000 46,000 2.2 F686-Z
6 13 5 15.2 1.1 0.15 1,080 440 39,000 46,000 2.2 F686-ZZ
7 14 3.5 16 1 0.15 1,170 505 37,000 44,000 2.4 F687
7 14 3.5 16 1 0.15 1,170 505 37,000 44,000 2.4 F687C3
7 14 5 16 1.1 0.15 1,170 505 37,000 44,000 2.4 F687-Z
7 14 5 16 1.1 0.15 1,170 505 37,000 44,000 2.4 F687-ZZ
8 16 4 18 1 0.2 1,610 715 35,000 41,000 3.5 F688
8 16 4 18 1 0.2 1,610 715 35,000 41,000 3.5 F688C3
8 16 5 18 1.1 0.2 1,610 715 35,000 41,000 3.5 F688-Z
8 16 5 18 1.1 0.2 1,610 715 35,000 41,000 3.5 F688-ZZ
9 17 4 19 1 0.2 1,720 820 33,000 39,000 3.6 F689
9 17 4 19 1 0.2 1,720 820 33,000 39,000 3.6 F689C3
9 17 5 19 1.1 0.2 1,720 820 33,000 39,000 3.6 F689-Z
9 17 5 19 1.1 0.2 1,720 820 33,000 39,000 3.6 F689-ZZ
1 4 1.6 5 0.5 0.1 157 43 96,000 110,000 0.14 F691
1 4 1.6 5 0.5 0.1 157 43 96,000 110,000 0.14 F691C3
1 4 2.3 5 0.6 0.1 157 43 96,000 110,000 0.14 F691-Z
1 4 2.3 5 0.6 0.1 157 43 96,000 110,000 0.14 F691-ZZ
1.5 5 2 6.5 0.6 0.15 171 51 79,000 93,000 0.24 F69/1.5
1.5 5 2 6.5 0.6 0.15 171 51 79,000 93,000 0.24 F69/1.5C3
1.5 5 2.6 6.5 0.8 0.15 171 51 79,000 93,000 0.24 F69/1.5-Z
1.5 5 2.6 6.5 0.8 0.15 171 51 79,000 93,000 0.24 F69/1.5-ZZ
2 6 2.3 7.5 0.6 0.15 279 89 67,000 79,000 0.38 F692
2 6 2.3 7.5 0.6 0.15 279 89 67,000 79,000 0.38 F692C3
2 6 3 7.5 0.8 0.15 279 89 67,000 79,000 0.38 F692-Z
2 6 3 7.5 0.8 0.15 279 89 67,000 79,000 0.38 F692-ZZ
2.5 7 2.5 8.5 0.7 0.15 284 96 59,000 70,000 0.53 F69/2.5
2.5 7 2.5 8.5 0.7 0.15 284 96 59,000 70,000 0.53 F69/2.5C3
2.5 7 3.5 8.5 0.9 0.15 284 96 59,000 70,000 0.53 F69/2.5-Z
2.5 7 3.5 8.5 0.9 0.15 284 96 59,000 70,000 0.53 F69/2.5-ZZ
3 8 3 9.5 0.7 0.15 560 180 54,000 63,000 0.72 F693
3 8 3 9.5 0.7 0.15 560 180 54,000 63,000 0.72 F693C3
3 8 4 9.5 0.9 0.15 560 180 54,000 63,000 0.72 F693-Z
3 8 4 9.5 0.9 0.15 560 180 54,000 63,000 0.72 F693-ZZ
4 11 4 12.5 1 0.15 715 276 45,000 52,000 2 F694
4 11 4 12.5 1 0.15 715 276 45,000 52,000 2 F694C3
4 11 4 12.5 1 0.15 715 276 45,000 52,000 2 F694-Z
4 11 4 12.5 1 0.15 715 276 45,000 52,000 2 F694-ZZ
5 13 4 15 1 0.2 1,080 430 40,000 47,000 2.7 F695
5 13 4 15 1 0.2 1,080 430 40,000 47,000 2.7 F695C3
5 13 4 15.2 1 0.2 1,080 430 40,000 47,000 2.7 F695-Z
5 13 4 15.2 1 0.2 1,080 430 40,000 47,000 2.7 F695-ZZ
6 15 5 17 1.2 0.2 1,350 530 37,000 44,000 4.3 F696
6 15 5 17 1.2 0.2 1,350 530 37,000 44,000 4.3 F696C3
6 15 5 17 1.2 0.2 1,350 530 37,000 44,000 4.3 F696-Z
6 15 5 17 1.2 0.2 1,350 530 37,000 44,000 4.3 F696-ZZ
7 17 5 19 1.2 0.3 1,610 715 35,000 41,000 5.7 F697
7 17 5 19 1.2 0.3 1,610 715 35,000 41,000 5.7 F697C3
7 17 5 19 1.2 0.3 1,610 715 35,000 41,000 5.7 F697-Z
7 17 5 19 1.2 0.3 1,610 715 35,000 41,000 5.7 F697-ZZ
8 19 6 22 1.5 0.3 1,990 865 33,000 39,000 8.4 F698
8 19 6 22 1.5 0.3 1,990 865 33,000 39,000 8.4 F698C3
8 19 6 22 1.5 0.3 1,990 865 33,000 39,000 8.4 F698-Z
8 19 6 22 1.5 0.3 1,990 865 33,000 39,000 8.4 F698-ZZ
