HCAK Series(Pillow Block Bearings)

HCAK Series(Pillow Block Bearings)

Category:

Description

 Item No.: HCAK Series(Pillow Block Bearings)

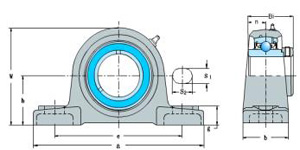

Shaft Dia Boundary dimensions(mm) Bolt Size Bearing No. Housing No. Mass Bearing Number
in. mm h a e b s1 s2 g w Bi n Kg
1/2β€³ – 31.8 127 96 31 13 16 14 63 44 17 3/8β€³ HC201-8 AK204 0.7 HCAK201-8
5/8β€³ – 31.8 127 96 31 13 16 14 63 44 17 3/8β€³ HC202-10 AK204 0.7 HCAK202-10
– 20 31.8 127 96 31 13 16 14 63 44 17 M10 HC204 AK204 0.7 HCAK204
3/4β€³ – 31.8 127 96 31 13 16 14 63 44 17 3/8β€³ HC204-12 AK204 0.7 HCAK204-12
– 25 33.3 140 105 38 13 19 15 67 44 17 M10 HC205 AK205 0.9 HCAK205
7/8β€³ – 33.3 140 105 38 13 19 15 67 44 17 3/8β€³ HC205-14 AK205 0.9 HCAK205-14
15/16β€³ – 33.3 140 105 38 13 19 15 67 44 17 3/8β€³ HC205-15 AK205 0.9 HCAK205-15
1β€³ – 33.3 140 105 38 13 19 15 67 44 17 3/8β€³ HC205-16 AK205 0.9 HCAK205-16
– 30 36.7 160 121 44 14 19 16 79 48 18 M14 HC206 AK206 1.5 HCAK206
1-1/16β€³ – 36.7 160 121 44 14 19 16 79 48 18 1/2β€³ HC206-17 AK206 1.5 HCAK206-17
1-1/8β€³ – 36.7 160 121 44 14 19 16 79 48 18 1/2β€³ HC206-18 AK206 1.5 HCAK206-18
1-3/16β€³ – 36.7 160 121 44 14 19 16 79 48 18 1/2β€³ HC206-19 AK206 1.5 HCAK206-19
1-1/4β€³ – 36.7 160 121 44 14 19 16 79 48 18 1/2β€³ HC206-20 AK206 1.5 HCAK206-20
– 35 46 167 127 48 15 19 17 91 51 19 M14 HC207 AK207 1.8 HCAK207
1-1/4β€³ – 46 167 127 48 15 19 17 91 51 19 1/2β€³ HC207-20 AK207 1.8 HCAK207-20
1-5/16β€³ – 46 167 127 48 15 19 17 91 51 19 1/2β€³ HC207-21 AK207 1.8 HCAK207-21
1-3/8β€³ – 46 167 127 48 15 19 17 91 51 19 1/2β€³ HC207-22 AK207 1.8 HCAK207-22
1-7/16β€³ – 46 167 127 48 15 19 17 91 51 19 1/2β€³ HC207-23 AK207 1.8 HCAK207-23
– 40 49.2 180 136 52 15 21 18 98 56 21 M14 HC208 AK208 2.2 HCAK208
1-1/2β€³ – 49.2 180 136 52 15 21 18 98 56 21 1/2β€³ HC208-24 AK208 2.2 HCAK208-24
1-9/16β€³ – 49.2 180 136 52 15 21 18 98 56 21 1/2β€³ HC208-25 AK208 2.2 HCAK208-25
– 45 52.4 189 146 54 15 21 20 105 56 21 M14 HC209 AK209 3 HCAK209
1-5/8β€³ – 52.4 189 146 54 15 21 20 105 56 21 1/2β€³ HC209-26 AK209 3 HCAK209-26
1-11/16β€³ – 52.4 189 146 54 15 21 20 105 56 21 1/2β€³ HC209-27 AK209 3 HCAK209-27
1-3/4β€³ – 52.4 189 146 54 15 21 20 105 56 21 1/2β€³ HC209-28 AK209 3 HCAK209-28
– 50 55.6 204 159 57 19 22 21 112 63 25 M16 HC210 AK210 3.4 HCAK210
1-7/8β€³ – 55.6 204 159 57 19 22 21 112 63 25 5/8β€³ HC210-30 AK210 3.4 HCAK210-30
1-15/16 – 55.6 204 159 57 19 22 21 112 63 25 5/8β€³ HC210-31 AK210 3.4 HCAK210-31
2β€³ – 55.6 204 159 57 19 22 21 112 63 25 5/8β€³ HC210-32 AK210 3.4 HCAK210-32
– 55 61.9 217 172 60 19 22 22 123 71 28 M16 HC211 AK211 5.2 HCAK211
2β€³ – 61.9 217 172 60 19 22 22 123 71 28 5/8β€³ HC211-32 AK211 5.2 HCAK211-32
2-1/8β€³ – 61.9 217 172 60 19 22 22 123 71 28 5/8β€³ HC211-34 AK211 5.2 HCAK211-34
2-3/16β€³ – 61.9 217 172 60 19 22 22 123 71 28 5/8β€³ HC211-35 AK211 5.2 HCAK211-35
– 60 68.3 238 186 66 19 25 24 136 78 31 M16 HC212 AK212 5.7 HCAK212
2-1/4β€³ – 68.3 238 186 66 19 25 24 136 78 31 5/8β€³ HC212-36 AK212 5.7 HCAK212-36
2-3/8β€³ – 68.3 238 186 66 19 25 24 136 78 31 5/8β€³ HC212-38 AK212 5.7 HCAK212-38
2-7/16β€³ – 68.3 238 186 66 19 25 24 136 78 31 5/8β€³ HC212-39 AK212 5.7 HCAK212-39
