SAAK Series(Pillow Block Bearings)

SAAK Series(Pillow Block Bearings)

Category:

Description

 Item No.: SAAK Series(Pillow Block Bearings)

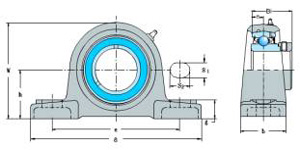

Shaft Dia Boundary dimensions(mm) Bolt Size Bearing No. Housing No. Mass Bearing Number
in. mm h a e b s1 s2 g w Bi n Kg
– 20 31.8 127 96 31 13 16 14 63 31 7 M10 SA204 AK204 0.5 SAAK204
3/4″ – 31.8 127 96 31 13 16 14 63 31 7 3/8″ SA204-12 AK204 0.5 SAAK204-12
– 25 33.3 140 105 38 13 19 15 67 31 8 M10 SA205 AK205 0.7 SAAK205
7/8″ – 33.3 140 105 38 13 19 15 67 31 8 3/8″ SA205-14 AK205 0.7 SAAK205-14
15/16″ – 33.3 140 105 38 13 19 15 67 31 8 3/8″ SA205-15 AK205 0.7 SAAK205-15
1″ – 33.3 140 105 38 13 19 15 67 31 8 3/8″ SA205-16 AK205 0.7 SAAK205-16
– 30 36.7 160 121 44 14 19 16 79 36 8 M14 SA206 AK206 1.2 SAAK206
1-1/16″ – 36.7 160 121 44 14 19 16 79 36 8 1/2″ SA206-17 AK206 1.2 SAAK206-17
1-1/8″ – 36.7 160 121 44 14 19 16 79 36 8 1/2″ SA206-18 AK206 1.2 SAAK206-18
1-3/16″ – 36.7 160 121 44 14 19 16 79 36 8 1/2″ SA206-19 AK206 1.2 SAAK206-19
1-1/4″ – 36.7 160 121 44 14 19 16 79 36 8 1/2″ SA206-20 AK206 1.2 SAAK206-20
– 35 46 167 127 48 15 19 17 91 39 9 M14 SA207 AK207 1.4 SAAK207
1-1/4″ – 46 167 127 48 15 19 17 91 39 9 1/2″ SA207-20 AK207 1.4 SAAK207-20
1-5/16″ – 46 167 127 48 15 19 17 91 39 9 1/2″ SA207-21 AK207 1.4 SAAK207-21
1-3/8″ – 46 167 127 48 15 19 17 91 39 9 1/2″ SA207-22 AK207 1.4 SAAK207-22
1-7/16″ – 46 167 127 48 15 19 17 91 39 9 1/2″ SA207-23 AK207 1.4 SAAK207-23
– 40 49.2 180 136 52 15 21 18 98 44 9 M14 SA208 AK208 1.9 SAAK208
1-1/2″ – 49.2 180 136 52 15 21 18 98 44 9 1/2″ SA208-24 AK208 1.9 SAAK208-24
1-9/16″ – 49.2 180 136 52 15 21 18 98 44 9 1/2″ SA208-25 AK208 1.9 SAAK208-25
– 45 52.4 189 146 54 15 21 20 105 44 10 M14 SA209 AK209 2.1 SAAK209
1-5/8″ – 52.4 189 146 54 15 21 20 105 44 10 1/2″ SA209-26 AK209 2.1 SAAK209-26
1-11/16″ – 52.4 189 146 54 15 21 20 105 44 10 1/2″ SA209-27 AK209 2.1 SAAK209-27
1-3/4″ – 52.4 189 146 54 15 21 20 105 44 10 1/2″ SA209-28 AK209 2.1 SAAK209-28
– 50 55.6 204 159 57 19 22 21 112 44 10 M16 SA210 AK210 2.3 SAAK210
1-7/8″ – 55.6 204 159 57 19 22 21 112 44 10 5/8″ SA210-30 AK210 2.3 SAAK210-30
1-15/16 – 55.6 204 159 57 19 22 21 112 44 10 5/8″ SA210-31 AK210 2.3 SAAK210-31
2″ – 55.6 204 159 57 19 22 21 112 44 10 5/8″ SA210-32 AK210 2.3 SAAK210-32
