SBP Series(Pillow Block Bearings)

SBP Series(Pillow Block Bearings)

Category:

Description

 Item No.: SBP Series(Pillow Block Bearings)

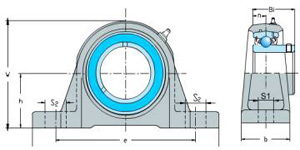

Shaft Dia Boundary dimensions(mm) Bolt Size Bearing No. Housing No. Mass Bearing Number
in. mm h a e b s1 s2 g w Bi n Kg
1/2″ �� 30.2 124 95 31 11 15 14 57 22 6 3/8″ SB201-8 P203 0.4 SBP201-8
5/8″ �� 30.2 124 95 31 11 15 14 57 22 6 3/8″ SB202-10 P203 0.4 SBP202-10
– 20 33.3 127 95 38 13 16 15 65 25 7 M10 SB204 P204 0.5 SBP204
3/4″ �� 33.3 127 95 38 13 16 15 65 25 7 3/8″ SB204-12 P204 0.5 SBP204-12
– 25 36.6 140 105 38 13 16 16 70 27 8 M10 SB205 P205 0.7 SBP205
7/8″ �� 36.6 140 105 38 13 16 16 70 27 8 3/8″ SB205-14 P205 0.7 SBP205-14
15/16″ �� 36.6 140 105 38 13 16 16 70 27 8 3/8″ SB205-15 P205 0.7 SBP205-15
1 �� 36.6 140 105 38 13 16 16 70 27 8 3/8″ SB205-16 P205 0.7 SBP205-16
– 30 42.9 165 121 48 17 21 18 83 30 8 M14 SB206 P206 1 SBP206
1-1/16″ �� 42.9 165 121 48 17 21 18 83 30 8 1/2″ SB206-17 P206 1 SBP206-17
1-1/8″ �� 42.9 165 121 48 17 21 18 83 30 8 1/2″ SB206-18 P206 1 SBP206-18
1-3/16″ �� 42.9 165 121 48 17 21 18 83 30 8 1/2″ SB206-19 P206 1 SBP206-19
1-1/4″ �� 42.9 165 121 48 17 21 18 83 30 8 1/2″ SB206-20 P206 1 SBP206-20
– 35 47.6 167 127 48 17 21 19 94 32 9 M14 SB207 P207 1.3 SBP207
1-1/4″ �� 47.6 167 127 48 17 21 19 94 32 9 1/2″ SB207-20 P207 1.3 SBP207-20
1-5/16″ �� 47.6 167 127 48 17 21 19 94 32 9 1/2″ SB207-21 P207 1.3 SBP207-21
1-3/8″ �� 47.6 167 127 48 17 21 19 94 32 9 1/2″ SB207-22 P207 1.3 SBP207-22
1-7/16″ �� 47.6 167 127 48 17 21 19 94 32 9 1/2″ SB207-23 P207 1.3 SBP207-23
– 40 49.2 184 137 54 17 25 19 100 34 9 M14 SB208 P208 1.8 SBP208
1-1/2″ �� 49.2 184 137 54 17 25 19 100 34 9 1/2″ SB208-24 P208 1.8 SBP208-24
