SBPE Series(Pillow Block Bearings)

SBPE Series(Pillow Block Bearings)

Category:

Description

 Item No.: SBPE Series(Pillow Block Bearings)

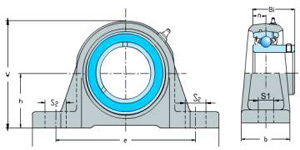

Shaft Dia Boundary dimensions(mm) Bolt Size Bearing No. Housing No. Mass Bearing Number
in. mm h a e b s1 s2 g w Bi n Kg
1/2″ – 30.2 124 95 31 11 15 14 57 22 6 3/8″ SB201-8 PE203 0.4 SBPE201-8
5/8″ – 30.2 124 95 31 11 15 14 57 22 6 3/8″ SB202-10 PE203 0.4 SBPE202-10
– 20 33.3 127 95 38 13 16 15 65 25 7 M10 SB204 PE204 0.5 SBPE204
3/4″ – 33.3 127 95 38 13 16 15 65 25 7 3/8″ SB204-12 PE204 0.5 SBPE204-12
– 25 36.6 140 105 38 13 16 16 70 27 8 M10 SB205 PE205 0.7 SBPE205
7/8″ – 36.6 140 105 38 13 16 16 70 27 8 3/8″ SB205-14 PE205 0.7 SBPE205-14
15/16″ – 36.6 140 105 38 13 16 16 70 27 8 3/8″ SB205-15 PE205 0.7 SBPE205-15
1 – 36.6 140 105 38 13 16 16 70 27 8 3/8″ SB205-16 PE205 0.7 SBPE205-16
– 30 42.9 165 121 48 17 21 18 83 30 8 M14 SB206 PE206 1 SBPE206
1-1/16″ – 42.9 165 121 48 17 21 18 83 30 8 1/2″ SB206-17 PE206 1 SBPE206-17
1-1/8″ – 42.9 165 121 48 17 21 18 83 30 8 1/2″ SB206-18 PE206 1 SBPE206-18
1-3/16″ – 42.9 165 121 48 17 21 18 83 30 8 1/2″ SB206-19 PE206 1 SBPE206-19
1-1/4″ – 42.9 165 121 48 17 21 18 83 30 8 1/2″ SB206-20 PE206 1 SBPE206-20
– 35 47.6 167 127 48 17 21 19 94 32 9 M14 SB207 PE207 1.3 SBPE207
1-1/4″ – 47.6 167 127 48 17 21 19 94 32 9 1/2″ SB207-20 PE207 1.3 SBPE207-20
1-5/16″ – 47.6 167 127 48 17 21 19 94 32 9 1/2″ SB207-21 PE207 1.3 SBPE207-21
1-3/8″ – 47.6 167 127 48 17 21 19 94 32 9 1/2″ SB207-22 PE207 1.3 SBPE207-22
1-7/16″ – 47.6 167 127 48 17 21 19 94 32 9 1/2″ SB207-23 PE207 1.3 SBPE207-23
– 40 49.2 184 137 54 17 25 19 100 34 9 M14 SB208 PE208 1.8 SBPE208
1-1/2″ – 49.2 184 137 54 17 25 19 100 34 9 1/2″ SB208-24 PE208 1.8 SBPE208-24
