UCP Series(Pillow Block Bearings)

UCP Series(Pillow Block Bearings)

Category:

Description

  Item No.: UCP Series(Pillow Block Bearings)

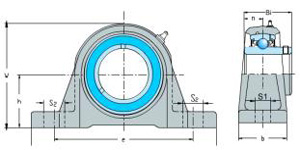

Shaft Dia Boundary dimensions(mm) Bolt Size Bearing No. Housing No. Mass Bearing
Number
in. mm h a e b s1 s2 g w Bi n Kg
1/2″ – 33.3 127 95 38 13 16 15 65 31 13 3/8″ UC201-8 PE204 0.8 UCP201-8
5/8″ – 33.3 127 95 38 13 16 15 65 31 13 3/8″ UC202-10 PE204 0.8 UCP202-10
– 20 33.3 127 95 38 13 16 15 65 31 13 M10 UC204 PE204 0.8 UCP204
3/4″ – 33.3 127 95 38 13 16 15 65 31 13 3/8″ UC204-12 PE204 0.8 UCP204-12
– 25 36.6 140 105 38 13 16 16 70 34 14 M10 UC205 PE205 1 UCP205
7/8″ – 36.6 140 105 38 13 16 16 70 34 14 3/8″ UC205-14 PE205 1 UCP205-14
15/16″ – 36.6 140 105 38 13 16 16 70 34 14 3/8″ UC205-15 PE205 1 UCP205-15
1 – 36.6 140 105 38 13 16 16 70 34 14 3/8″ UC205-16 PE205 1 UCP205-16
– 30 42.9 165 121 48 17 21 18 83 38 16 M14 UC206 PE206 1.6 UCP206
1-1/16″ – 42.9 165 121 48 17 21 18 83 38 16 1/2″ UC206-17 PE206 1.6 UCP206-17
1-1/8″ – 42.9 165 121 48 17 21 18 83 38 16 1/2″ UC206-18 PE206 1.6 UCP206-18
1-3/16″ – 42.9 165 121 48 17 21 18 83 38 16 1/2″ UC206-19 PE206 1.6 UCP206-19
1-1/4″ – 42.9 165 121 48 17 21 18 83 38 16 1/2″ UC206-20 PE206 1.6 UCP206-20
– 35 47.6 167 127 48 17 21 19 94 43 18 M14 UC207 PE207 2.1 UCP207
1-1/4″ – 47.6 167 127 48 17 21 19 94 43 18 1/2″ UC207-20 PE207 2.1 UCP207-20
1-5/16″ – 47.6 167 127 48 17 21 19 94 43 18 1/2″ UC207-21 PE207 2.1 UCP207-21
1-3/8″ – 47.6 167 127 48 17 21 19 94 43 18 1/2″ UC207-22 PE207 2.1 UCP207-22
1-7/16″ – 47.6 167 127 48 17 21 19 94 43 18 1/2″ UC207-23 PE207 2.1 UCP207-23
– 40 49.2 184 137 54 17 25 19 100 49 19 M14 UC208 PE208 2.6 UCP208
1-1/2″ – 49.2 184 137 54 17 25 19 100 49 19 1/2″ UC208-24 PE208 2.6 UCP208-24
1-9/16″ – 49.2 184 137 54 17 25 19 100 49 19 1/2″ UC208-25 PE208 2.6 UCP208-25
– 45 54 190 146 54 17 25 20 108 49 19 M14 UC209 PE209 3 UCP209
1-5/8″ – 54 190 146 54 17 25 20 108 49 19 1/2″ UC209-26 PE209 3 UCP209-26
1-11/16″ – 54 190 146 54 17 25 20 108 49 19 1/2″ UC209-27 PE209 3 UCP209-27
1-3/4″ – 54 190 146 54 17 25 20 108 49 19 1/2″ UC209-28 PE209 3 UCP209-28
– 50 57.2 206 159 60 20 25 22 114 52 19 M16 UC210 PE210 3.6 UCP210
1-7/8″ – 57.2 206 159 60 20 25 22 114 52 19 5/8″ UC210-30 PE210 3.6 UCP210-30
1-15/16 – 57.2 206 159 60 20 25 22 114 52 19 5/8″ UC210-31 PE210 3.6 UCP210-31
2″ – 57.2 206 159 60 20 25 22 114 52 19 5/8″ UC210-32 PE210 3.6 UCP210-32
– 55 63.5 219 171 60 20 25 22 126 56 22 M16 UC211 PE211 4.4 UCP211
2″ – 63.5 219 171 60 20 25 22 126 56 22 5/8″ UC211-32 PE211 4.4 UCP211-32
2-1/8″ – 63.5 219 171 60 20 25 22 126 56 22 5/8″ UC211-34 PE211 4.4 UCP211-34
2-3/16″ – 63.5 219 171 60 20 25 22 126 56 22 5/8″ UC211-35 PE211 4.4 UCP211-35
– 60 69.8 241 184 70 20 25 25 138 65 25 M16 UC212 PE212 6.2 UCP212
2-1/4″ – 69.8 241 184 70 20 25 25 138 65 25 5/8″ UC212-36 PE212 6.2 UCP212-36
2-3/8″ – 69.8 241 184 70 20 25 25 138 65 25 5/8″ UC212-38 PE212 6.2 UCP212-38
2-7/16″ – 69.8 241 184 70 20 25 25 138 65 25 5/8″ UC212-39 PE212 6.2 UCP212-39
– 65 76.2 265 203 70 25 29 27 150 65 25 M20 UC213 PE213 7 UCP213
2-1/2″ – 76.2 265 203 70 25 29 27 150 65 25 3/4″ UC213-40 PE213 7 UCP213-40
– 70 79.4 266 210 72 25 31 27 156 75 30 M20 UC214 PE214 7.6 UCP214
2-11/16″ – 79.4 266 210 72 25 31 27 156 75 30 3/4″ UC214-43 PE214 7.6 UCP214-43
2-3/4″ – 79.4 266 210 72 25 31 27 156 75 30 3/4″ UC214-44 PE214 7.6 UCP214-44
– 75 82.6 275 217 74 25 31 28 163 78 33 M20 UC215 PE215 8.5 UCP215
2-15/16″ – 82.6 275 217 74 25 31 28 163 78 33 3/4″ UC215-47 PE215 8.5 UCP215-47
3″ – 82.6 275 217 74 25 31 28 163 78 33 3/4″ UC215-48 PE215 8.5 UCP215-48
